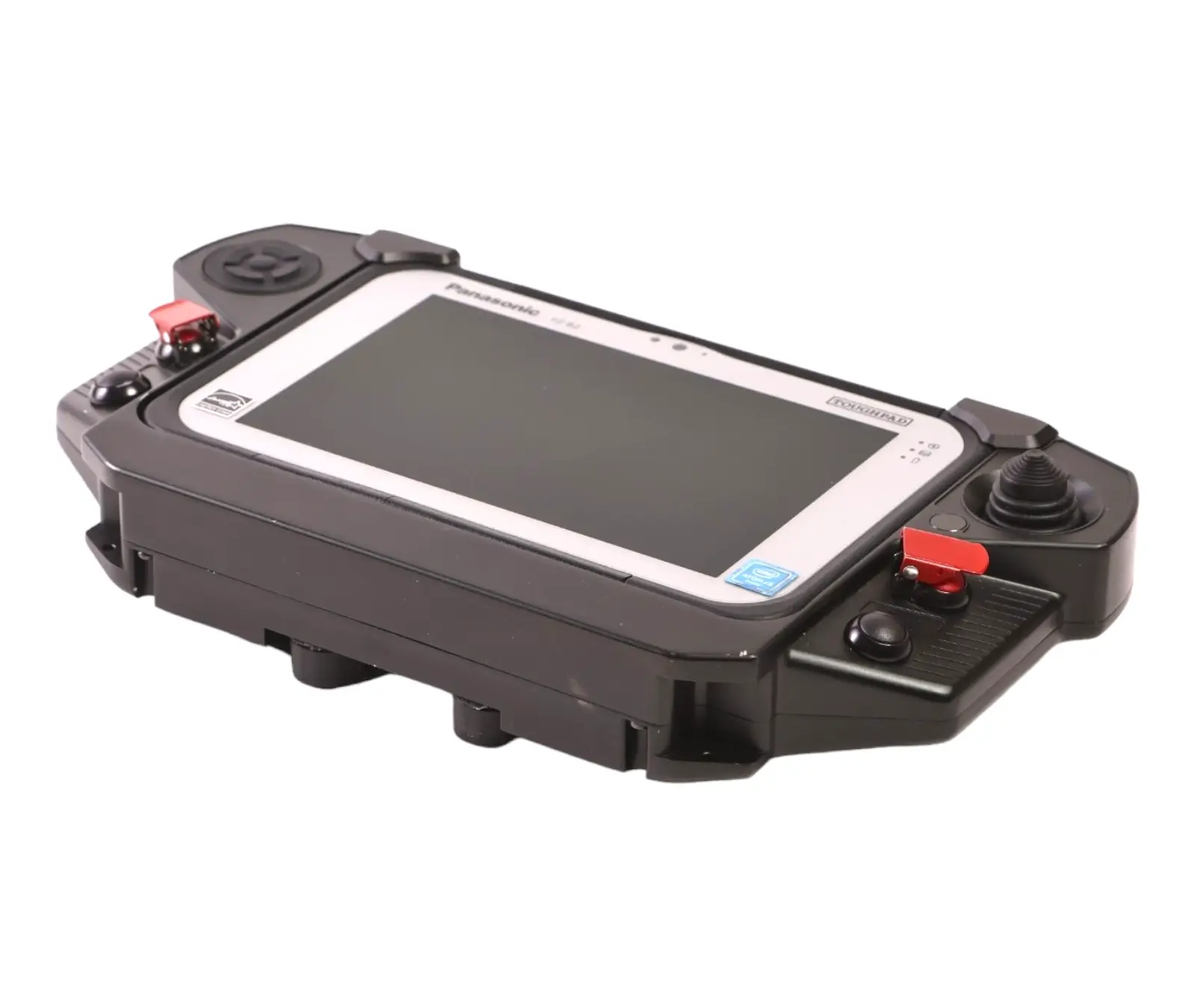

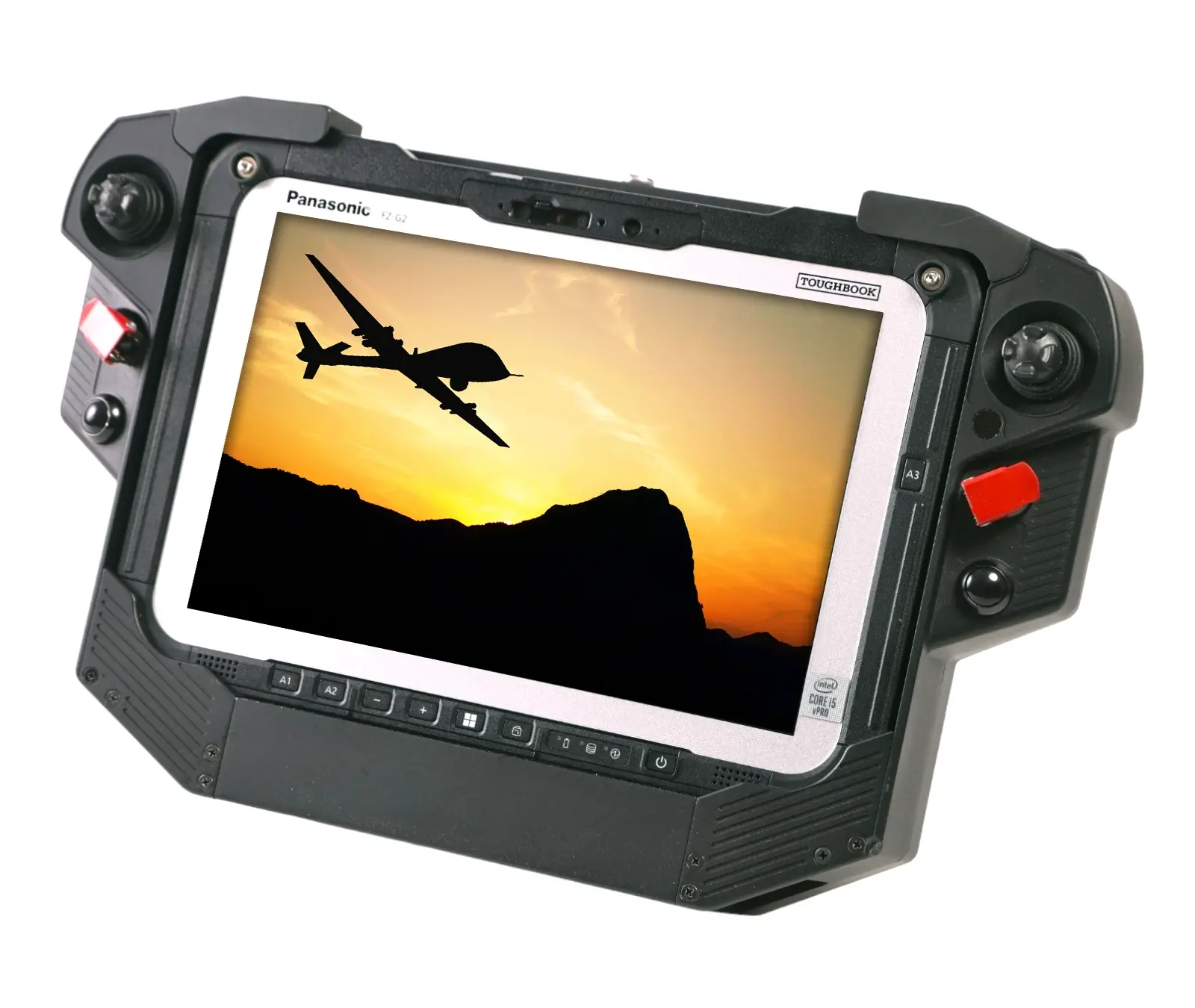

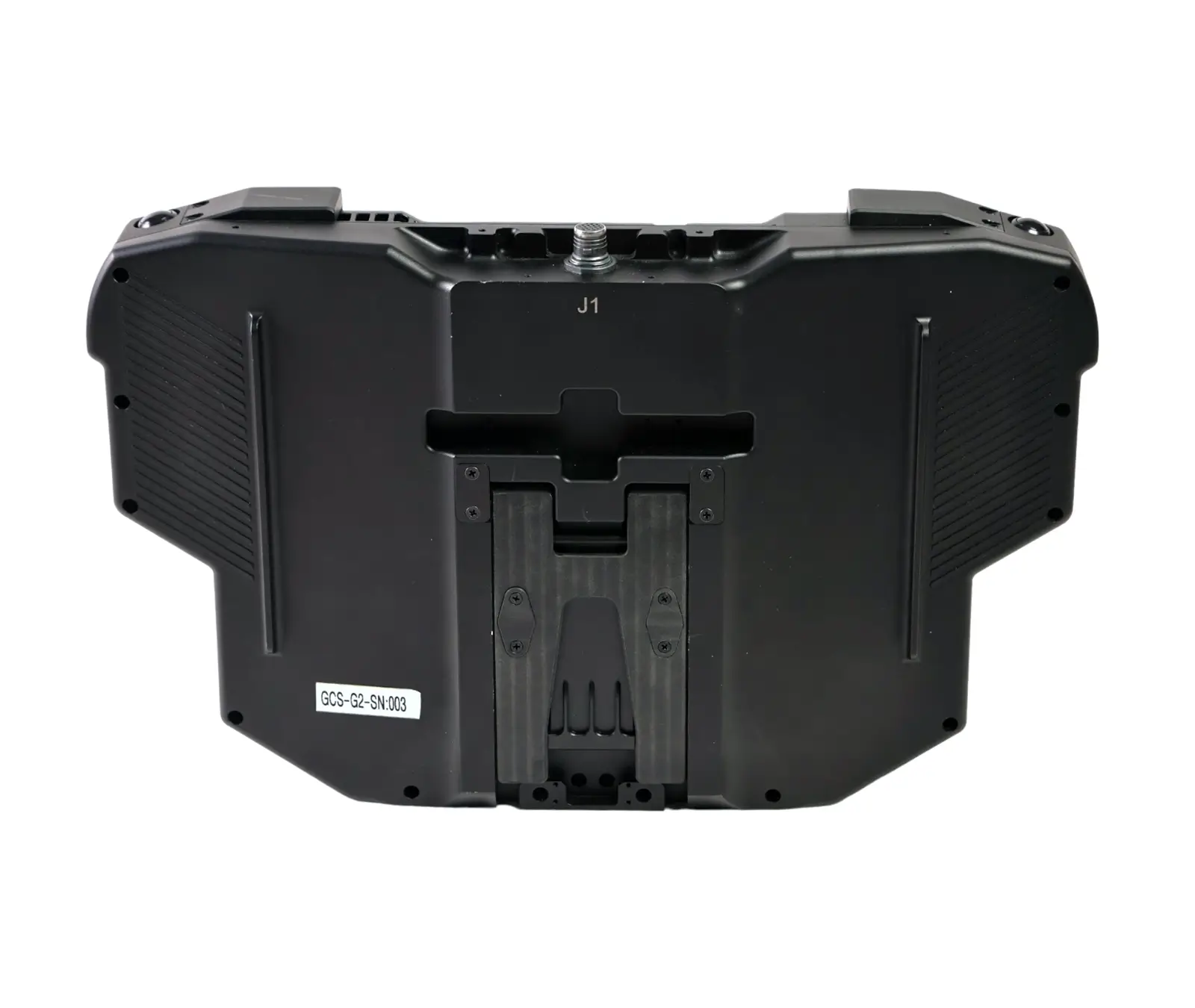

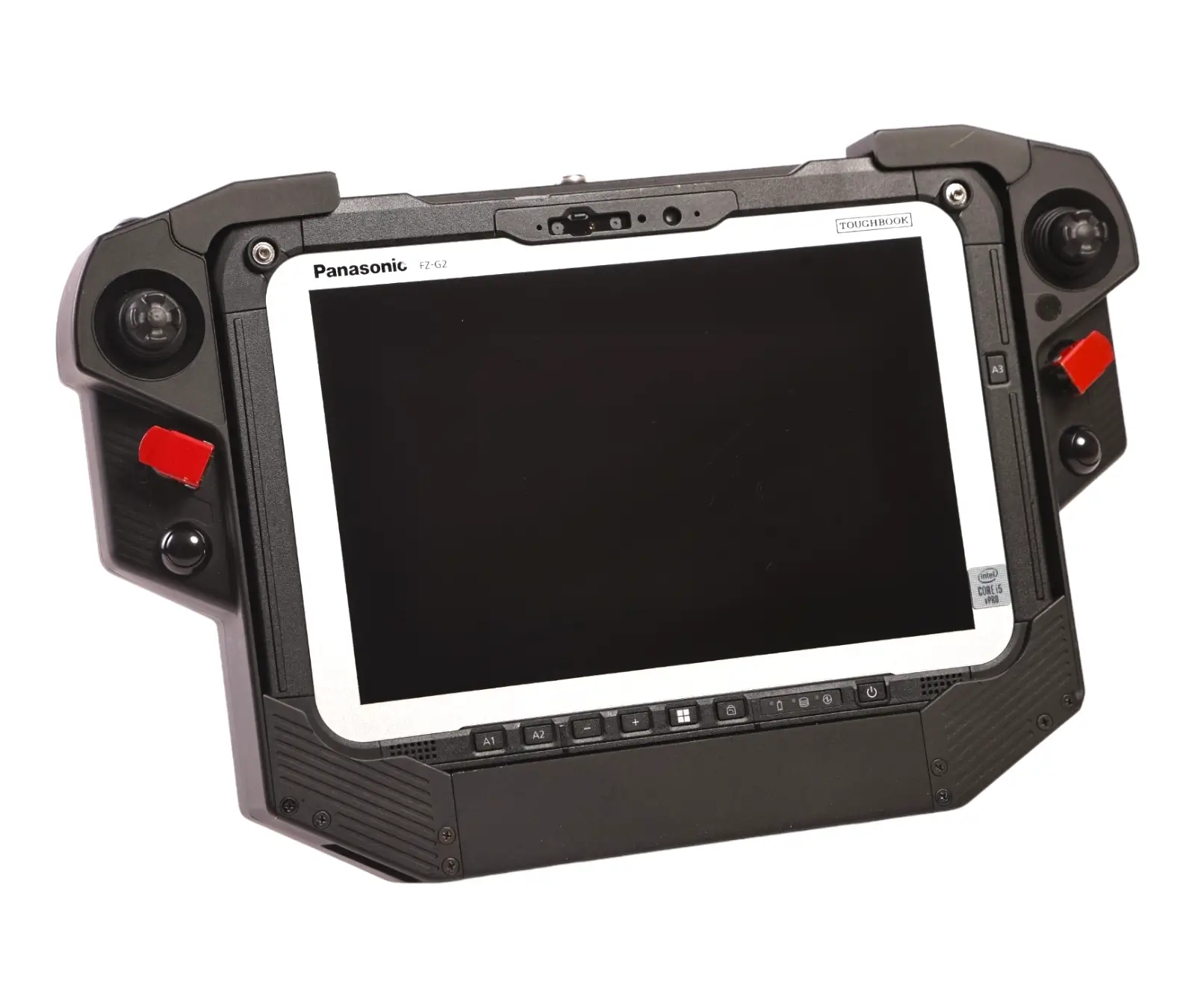

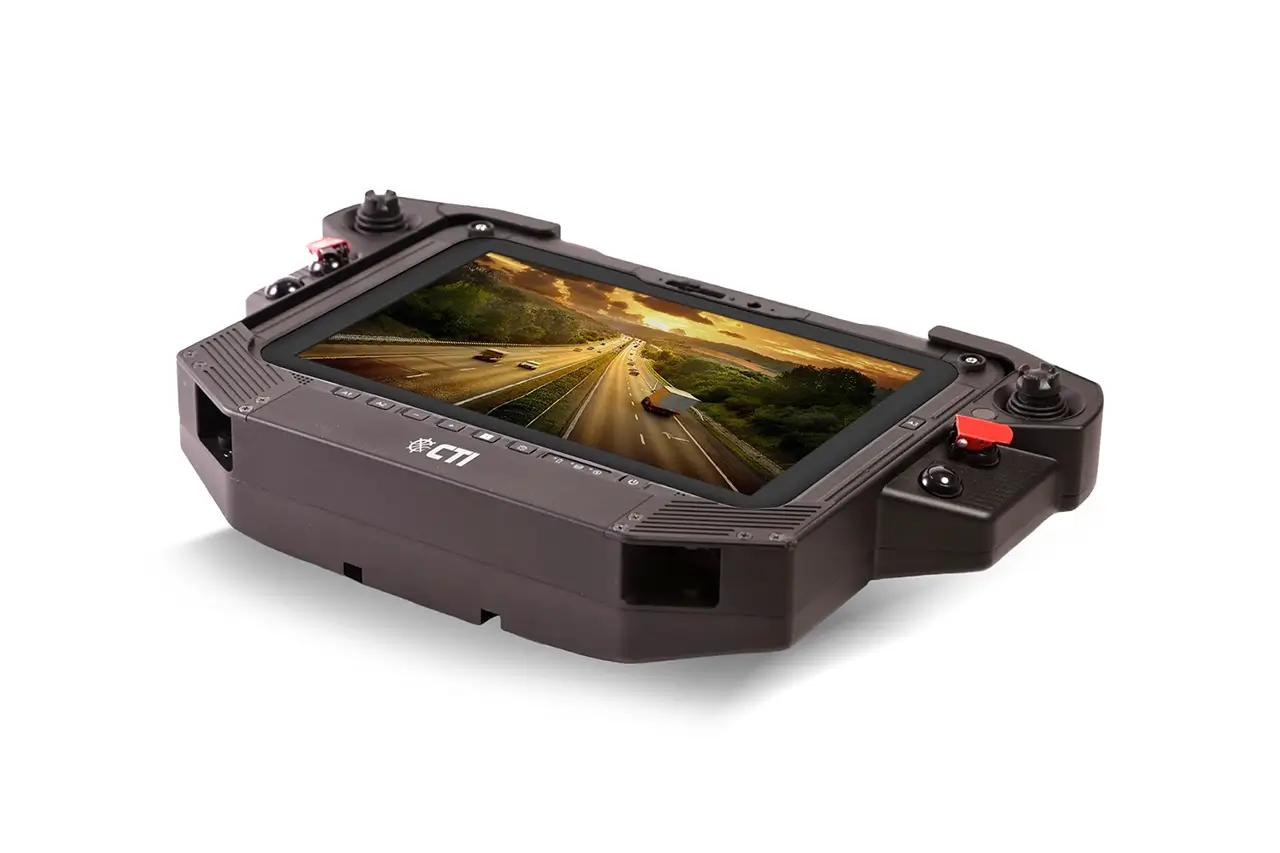

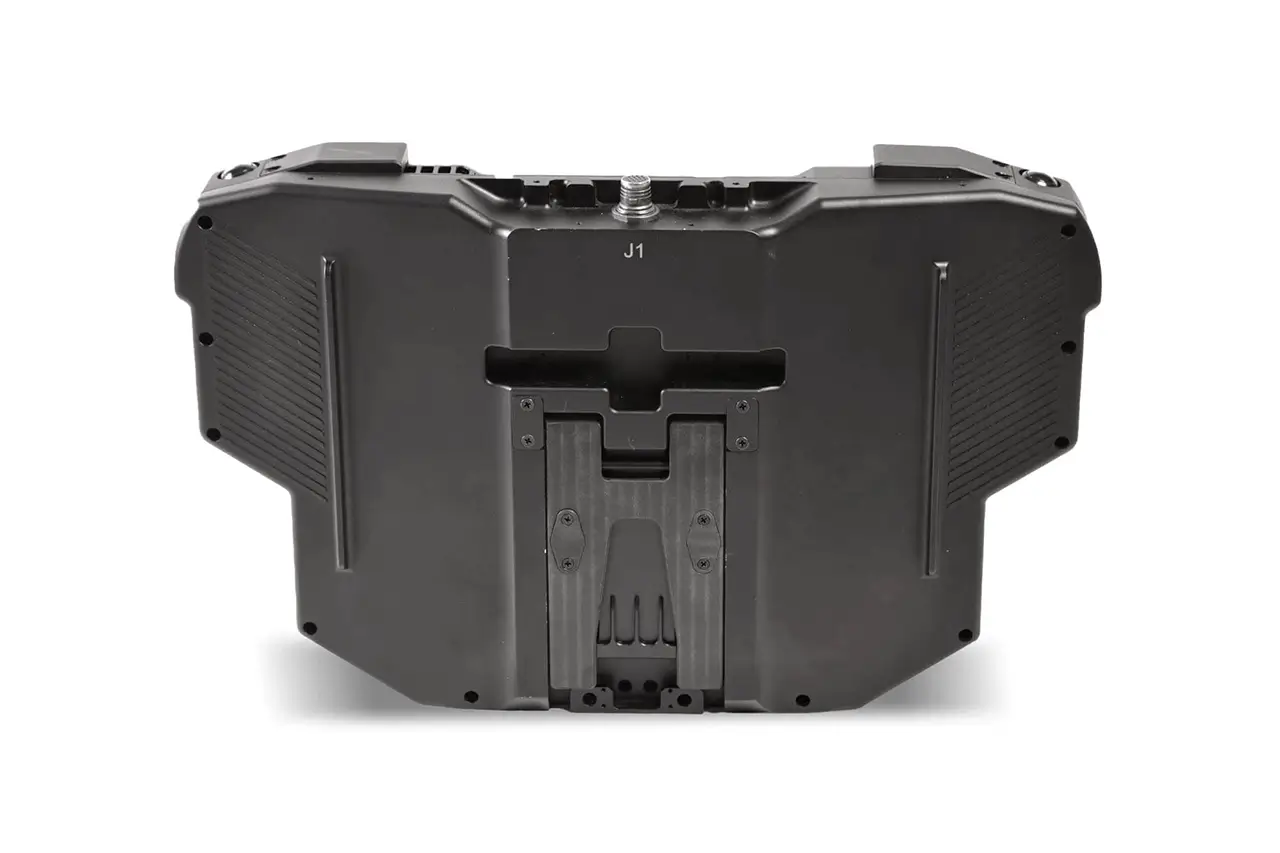

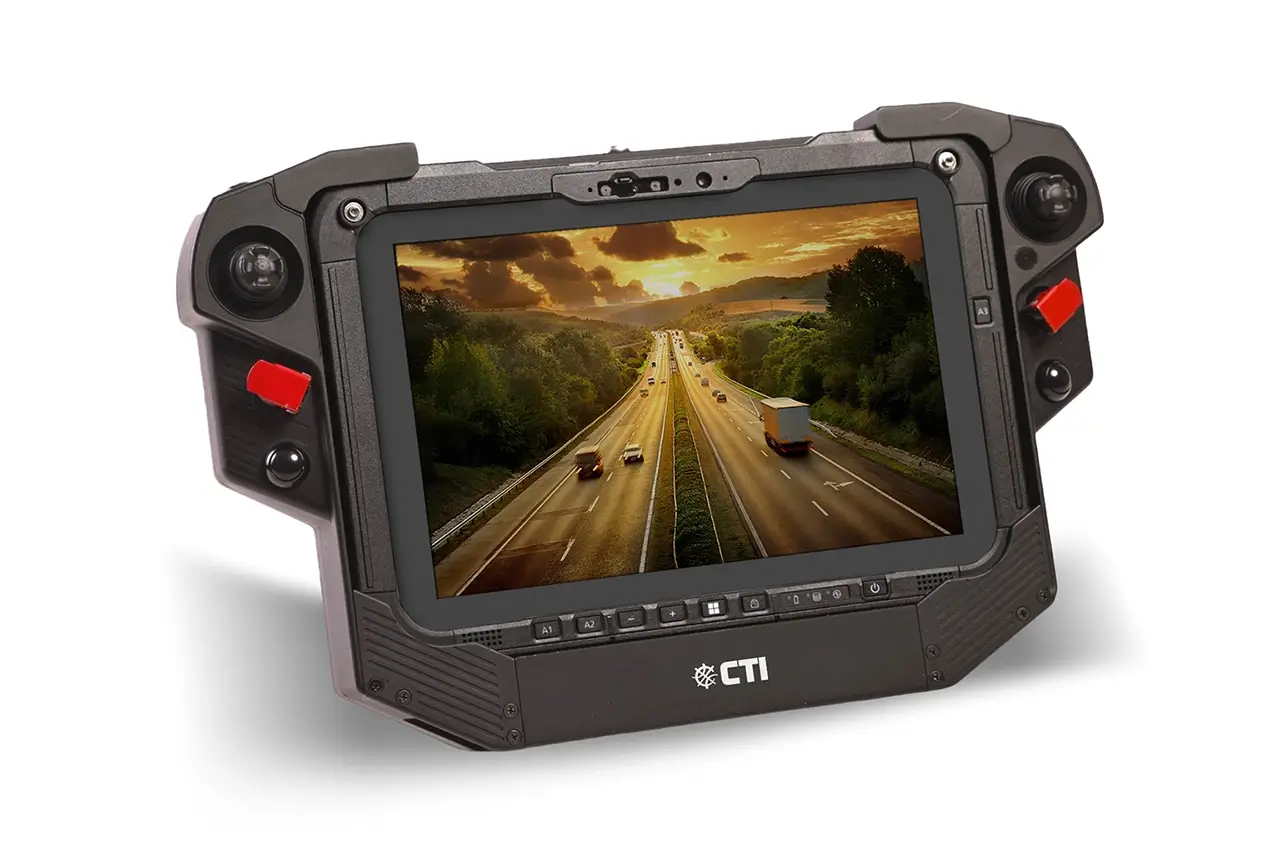

GCS Supreme based on Panasonic FZ-G2 Rugged Tablet

Unmanned vehicles, whether on the ground, in the air, or on the water, are valuable assets that need reliable controls in the most demanding of environments. Our ergonomic and rugged solutions, either stock or built to need, will meet the requirements of military, first responders, or commercial users.

Fully Ruggedized, high-performance tactical Tablet based on Panasonic FZ-G2 Fully Rugged Tablet

Complies with MIL-STD 810, 461, 1275 and IP65

Includes a wide range of interfaces

Tech Specs

Below are just a few of our standard specifications.
For more information and other options, please contact us at [email protected].

SOFTWARE Windows 10 Pro 64 bit

CPU Intel Core i7-10310U VPro processor

STORAGE & MEMORY
32GB DDR4
1TB SSD NVMe

TEMPERATURE MIL-STD 810G, Method 501.5 & 502.5
Operating –20° F to +140° F
Non Operating -60° F to + 160° F

HUMIDITY MIL-STD-810H
Method 507.5

VIBRATION MIL-STD-810H
Method 514.6 (Tested for M-113 APC, Namer APC, Merkava MBT)

SHOCK FUNCTIONAL
MIL-STD-810H, Method 516-6, Proc.I 40G 11ms, Saw-Tooth

EMI/RFI
MIL-STD-461G

INGRESS PROTECTION RATING
IP65

CHASSIS
Aluminum (Docking)

CONNECTORS
MIL-STD-D38999

INTERFACES

  • Power IN – D38999
  • 10/100/1000 Mbps Ethernet – D38999
  • USB2.0 x 1 – D38999

OPTIONS

  • Ublox GPS with TNC connector
  • CANBUS
  • RS-232
  • RS-170 x 2 (input)
  • USB2.0 x 4
  • USB2.0 x 2

POWER SUPPLY
Input 16 vdc

DIMENSIONS 200mm H x 220mm W x 70mm D
WEIGHT 2.0 Kg (with Tablet)
COLOR Black, Other colors – Optional
WARRANTY 1-year limited warranty, parts, and labor
