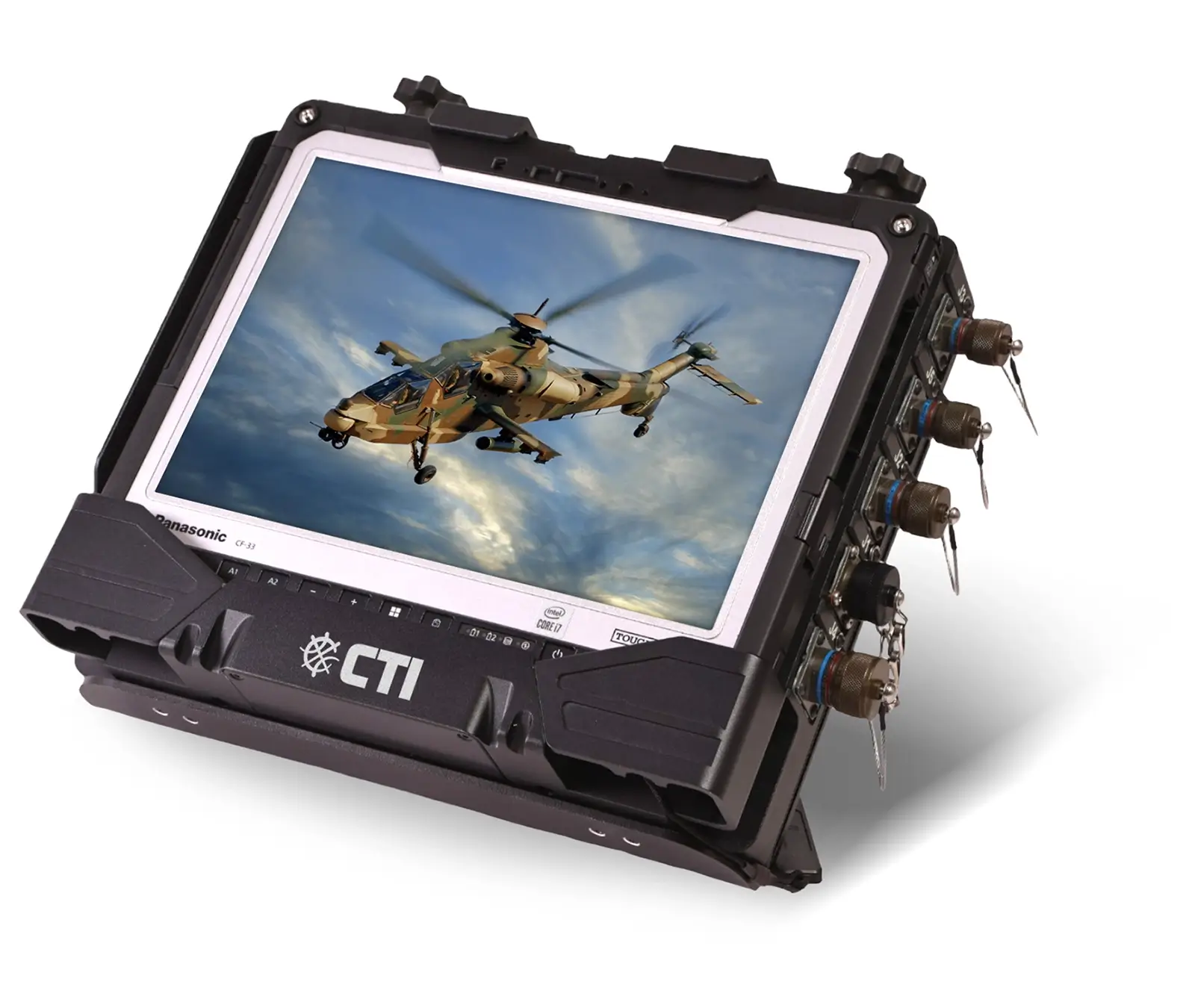

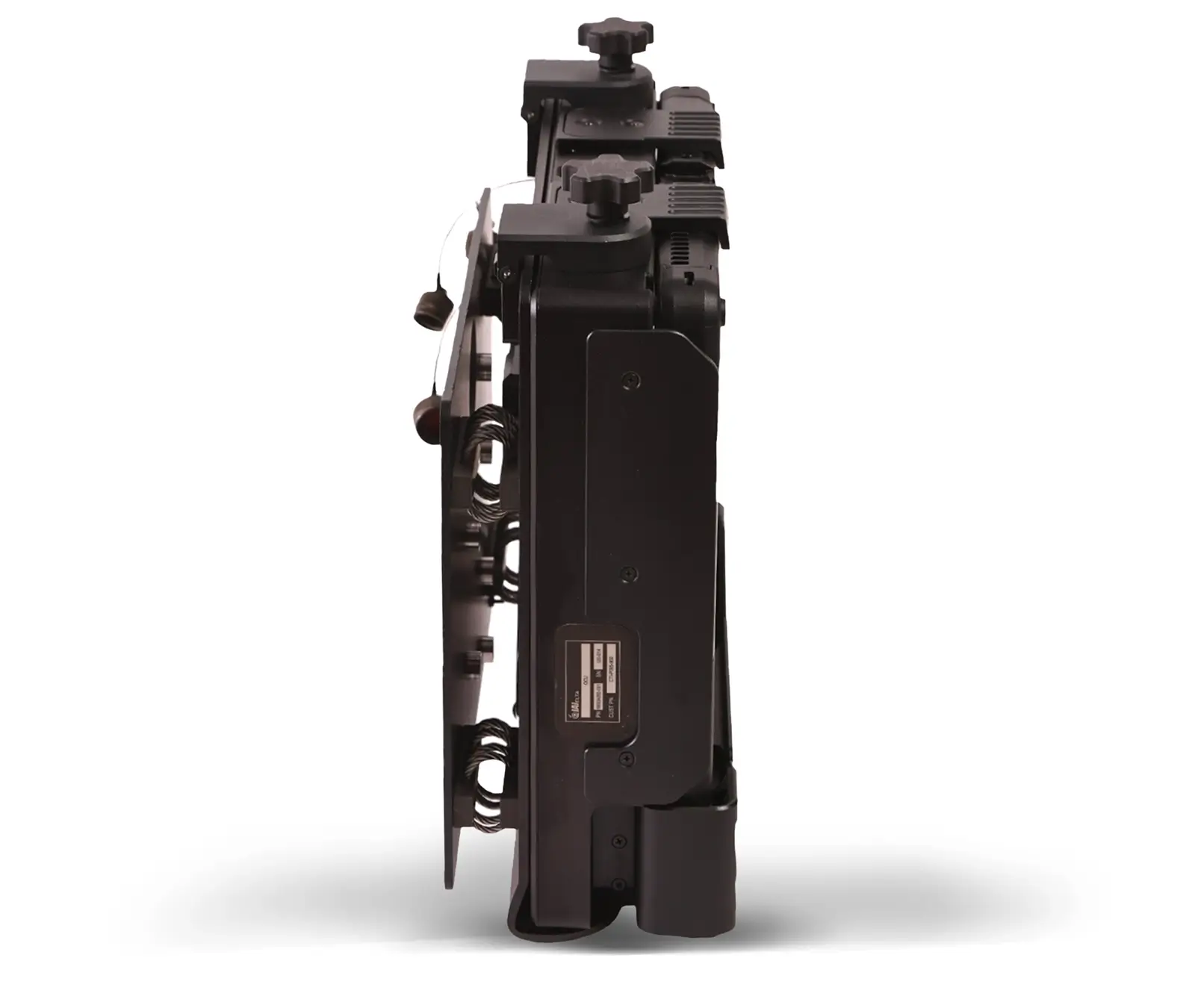

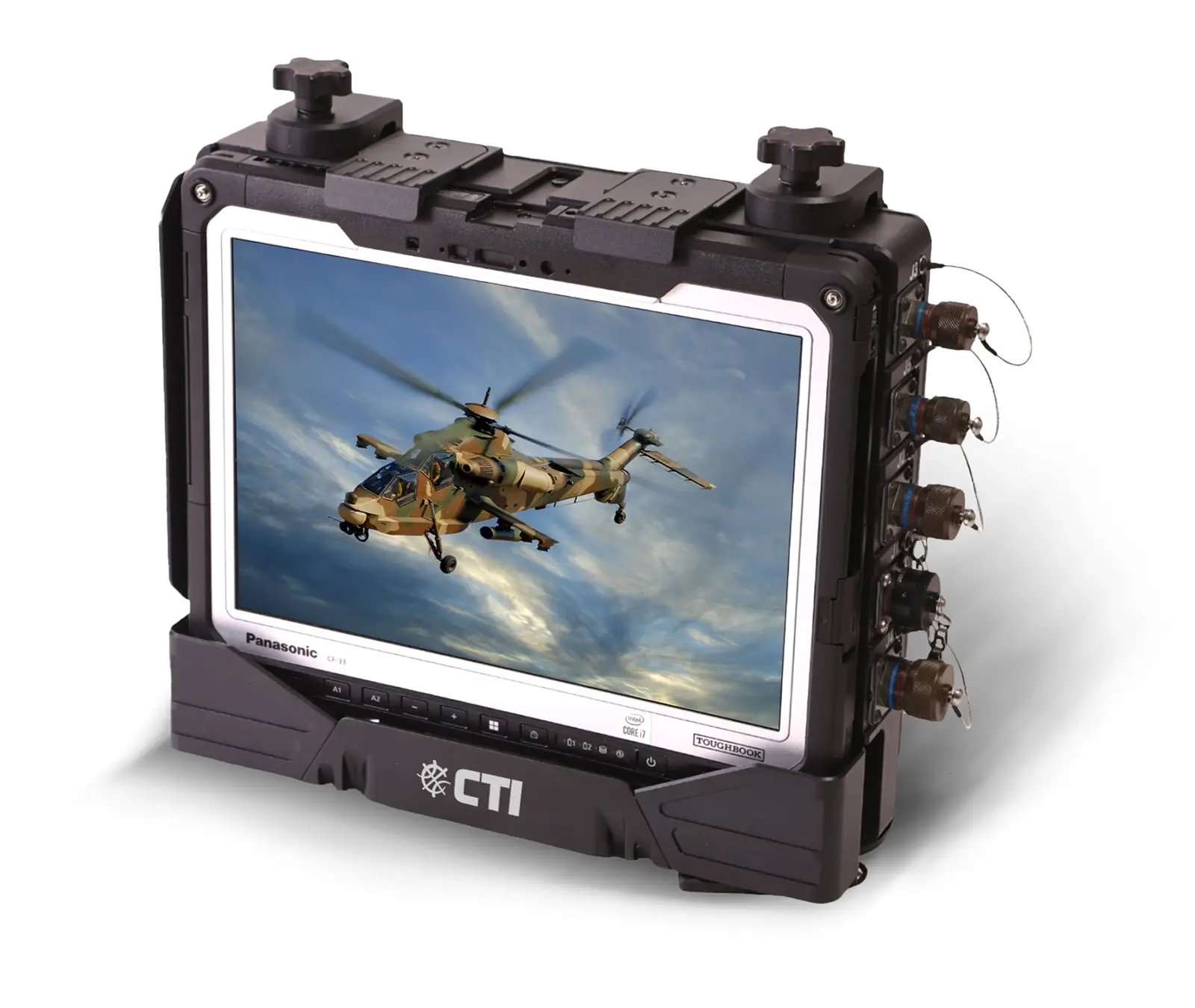

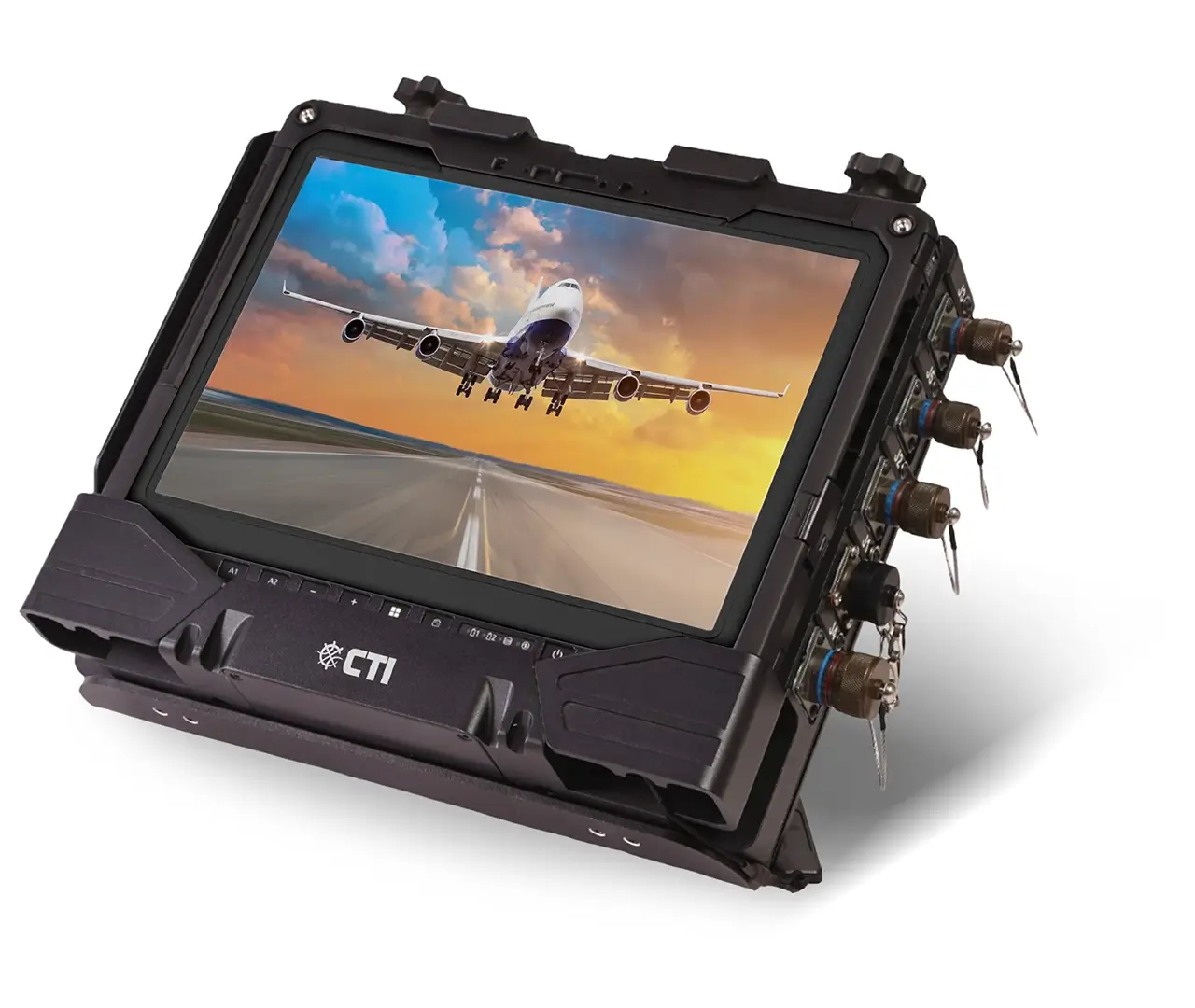

RVD Venture+ based on Panasonic Toughbook CF-33

Our cost-effective Rugged Vehicle Docks (RVDs) let you mount a rugged COTS computer in virtually any type of vehicle – tracked or wheeled, marine environment or desert, urban or out in the wild. These rugged docks are designed and tested to MIL standards, will protect your computer and its data, and offer a wide range of connections to meet most communication standards.

Fully Ruggedized, high-performance tactical Tablet based on Panasonic CF-33 Fully Rugged Tablet

Complies with MIL-STD 810, 461, 1275 and IP65

Meets the requirements for tanks, artillery and APC

Includes a wide range of interfaces

Tech Specs

Below are just a few of our standard specifications.
For more information and other options, please contact us at [email protected].

SOFTWARE Windows 10 Pro 64 bit

CPU
Intel® Corei5-10310u VPro Processor (3 MB cache, 2.6 GHz up to 3.5 GHz with Intel® Turbo Boost Technology)

STORAGE & MEMORY
32GB LPDDR3
SSD M.2 2TB

TEMPERATURE MIL-STD 810G, Method 501.4 & 502.4
Operating -28° C to +60° C
Non Operating -50° C to + 70° C

HUMIDITY MIL-STD-810G
Method 507.4

VIBRATION MIL-STD-810G
Method 514.5 Procedure I, Category 20

SHOCK FUNCTIONAL
MIL-STD-810G, Method 516-5, Proc.I 40G 11ms, Saw-Tooth

EMI/RFI
MIL-STD-461F

INGRESS PROTECTION RATING
IP65

CHASSIS
Aluminum (Docking)

DISPLAY
12” 3:2 QHD 2160X1440
10-point capacitive multi-touch + Waterproof Digitizer pen daylight-readable screen:

  • 2-1200 nit
  • Intel® UHD Graphics

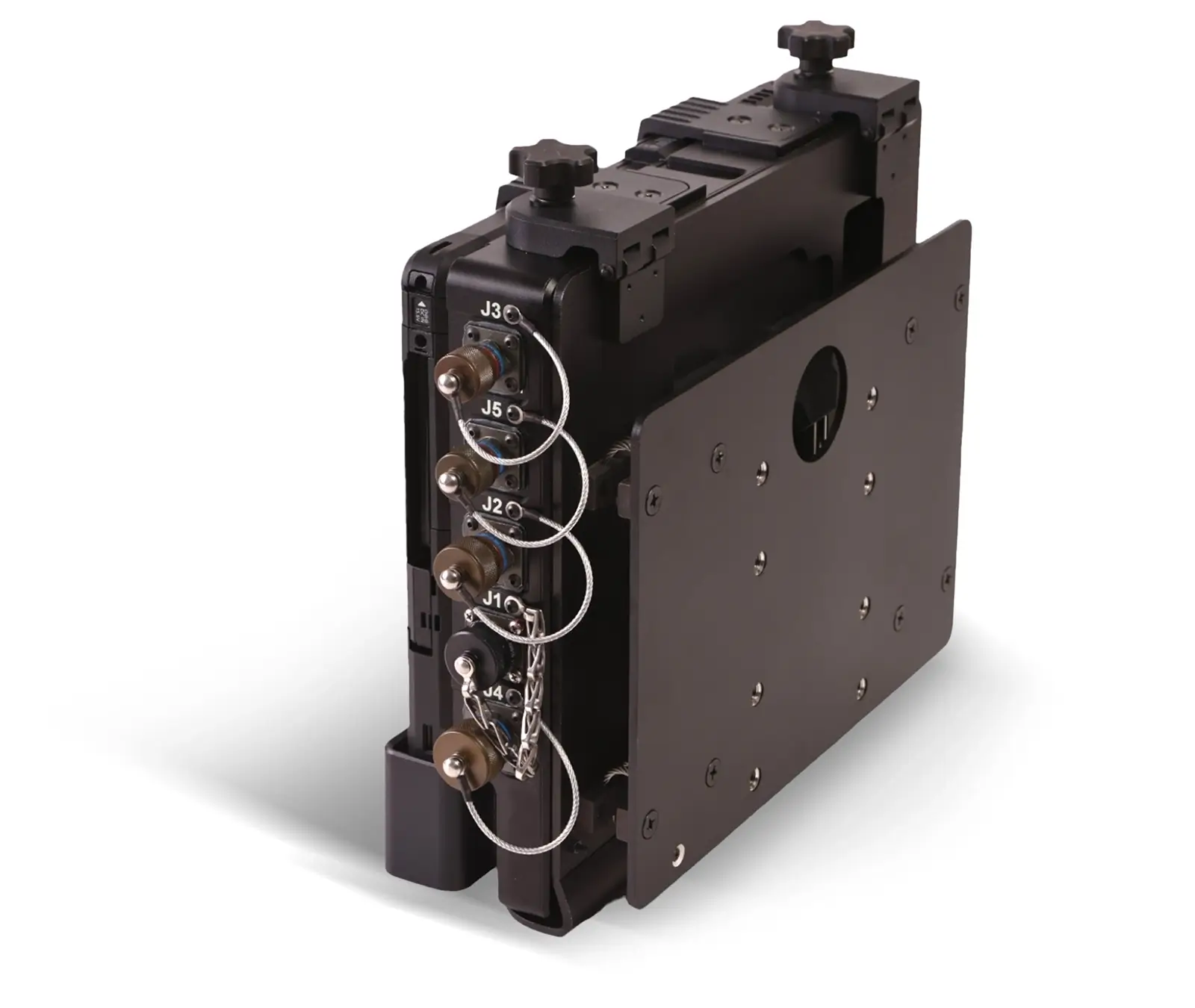

CONNECTORS

  • J1 – MS3112E12-3PY with dust cap
  • J2 – 20W35SN with dust cap – not connected
  • J3 – 20WA35PN with dust cap
  • J4 – 20WC35SN with dust cap
  • J5 – 20WA35SN with dust cap

INTERFACES

  • Power In 16-32 Vdc, Power Out 28VDC (Direct connection from EMI filter to J5) – Option
  • 10/100 Mbps Ethernet x 1
  • Audio In/Out
  • USB2.0 x 3

POWER SUPPLY
Input 16-32vdc. MIL-STD-1275D

MECHANICAL INTERFACES

  • VESA
  • RAM Mount
  • Shock Absorbers

DIMENSIONS 310mm H x 320mm W x 119mm D
WEIGHT 5.5 Kg
COLOR Black
WARRANTY 1-year limited warranty, parts, and labor
