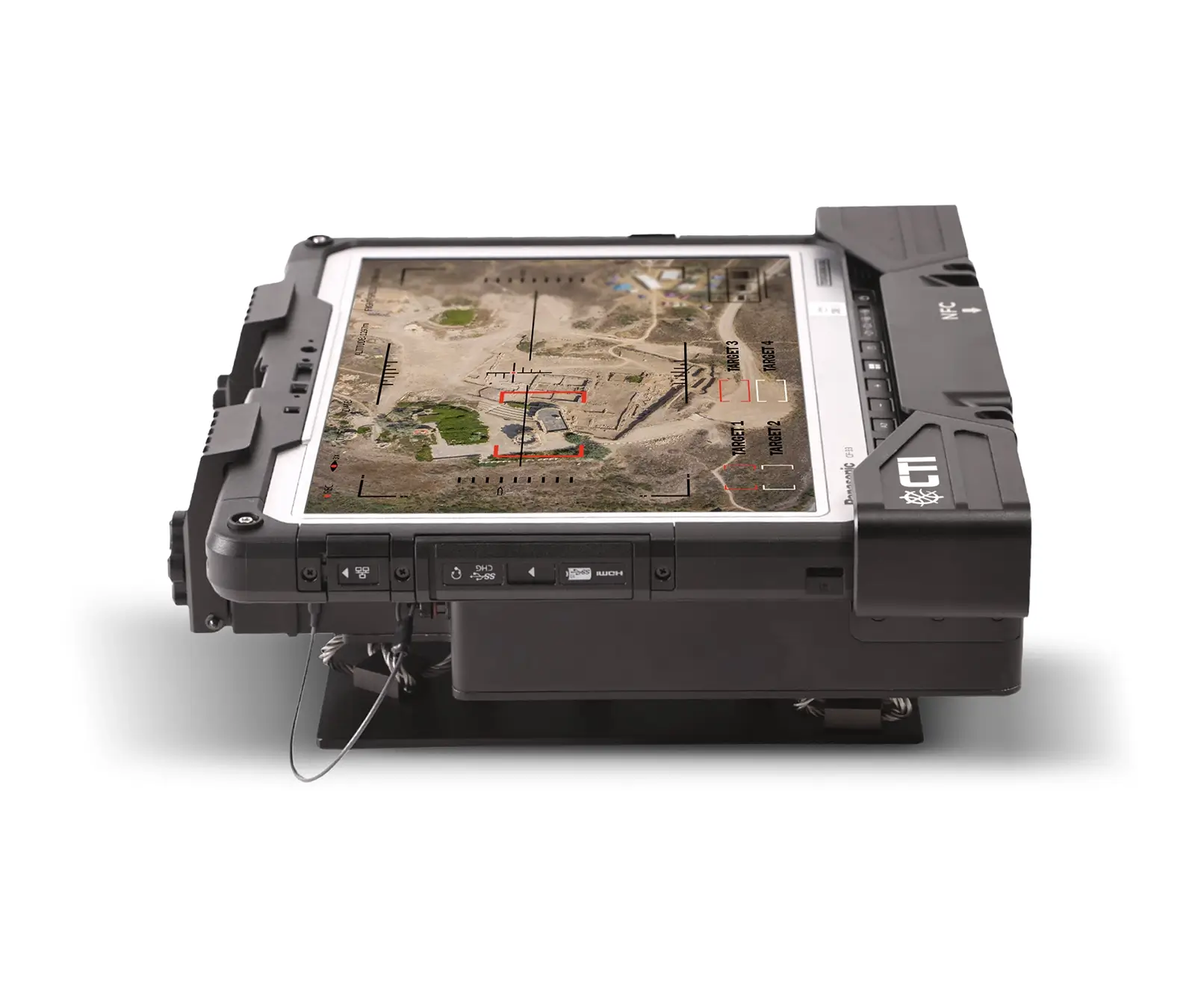

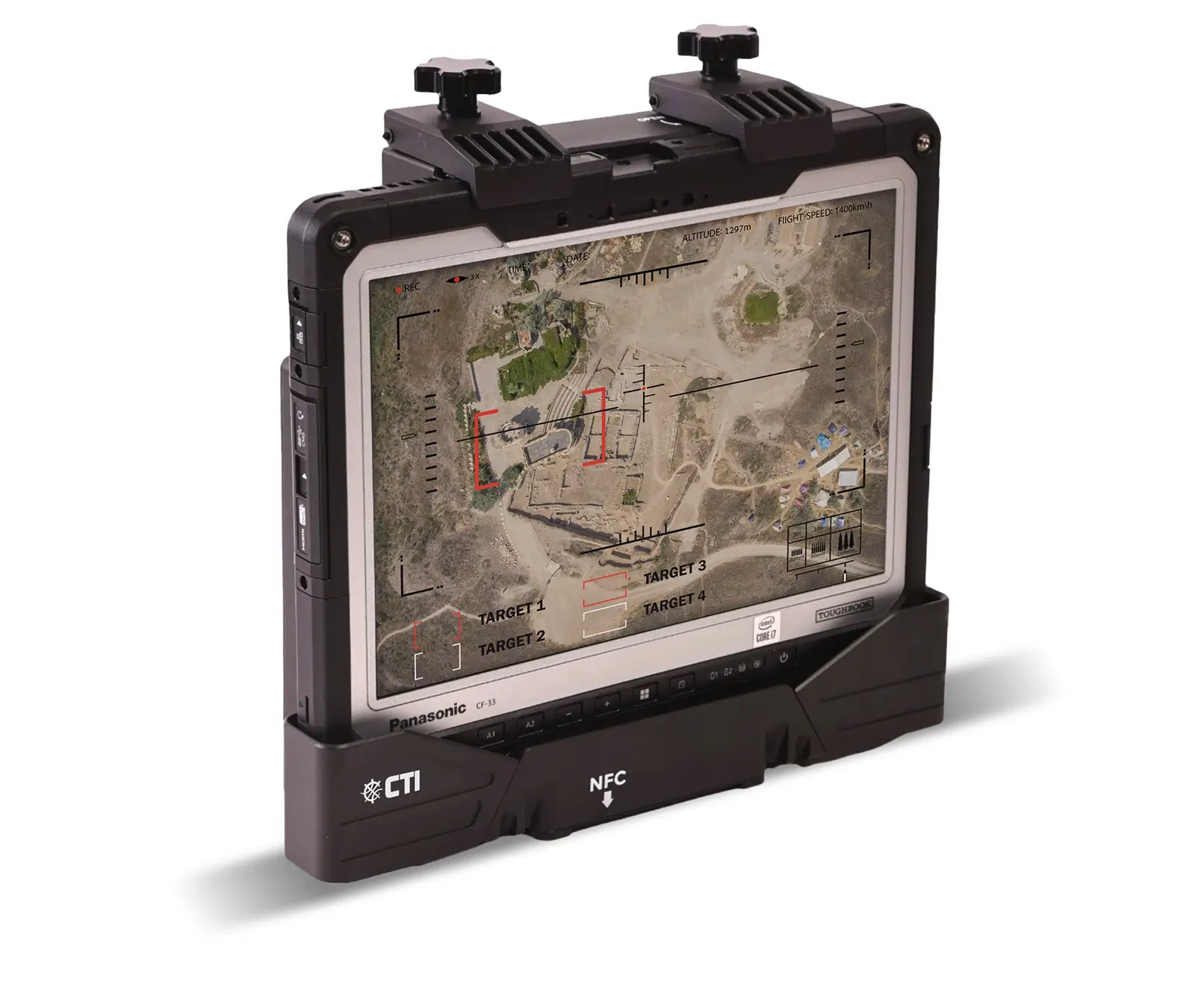

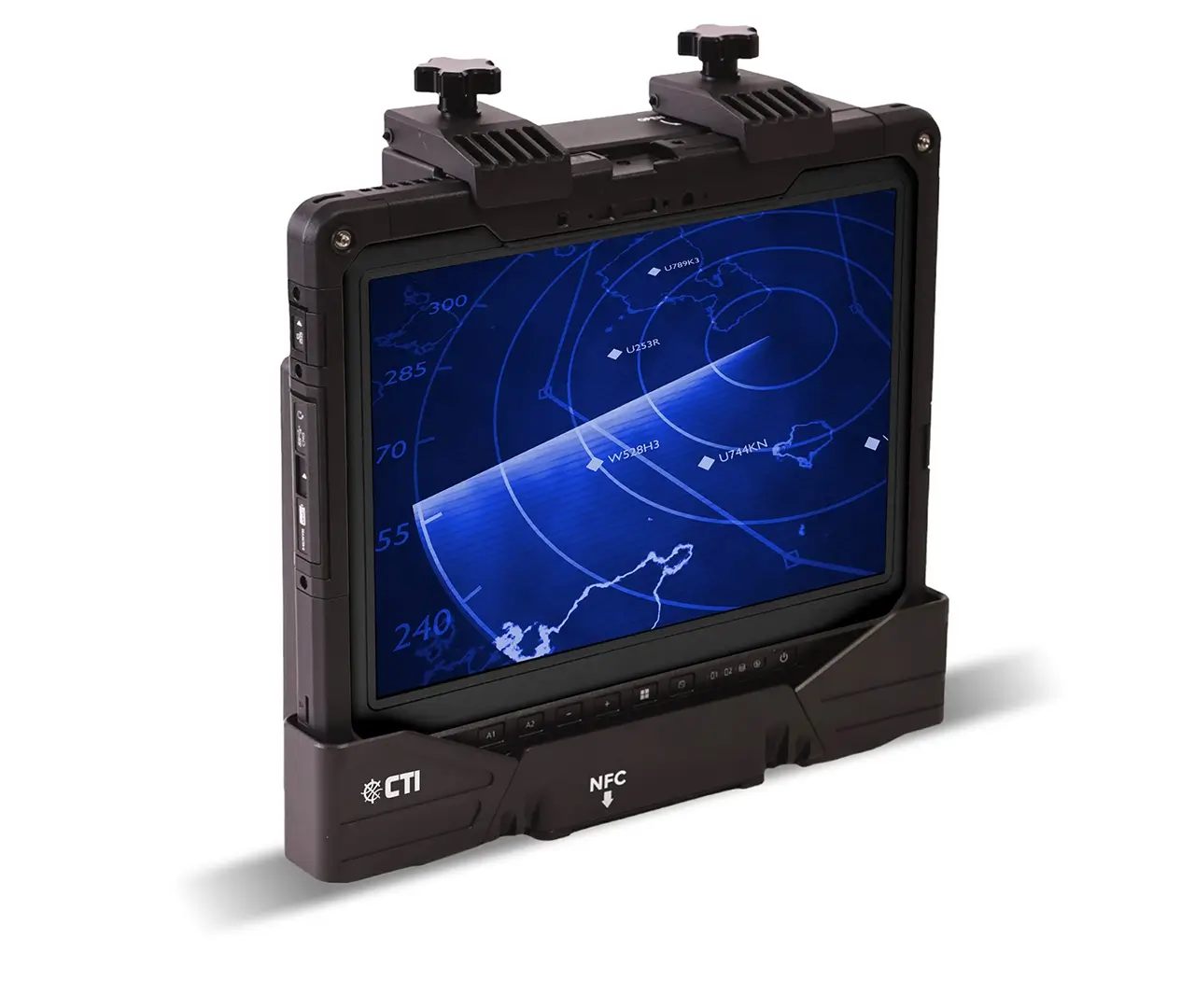

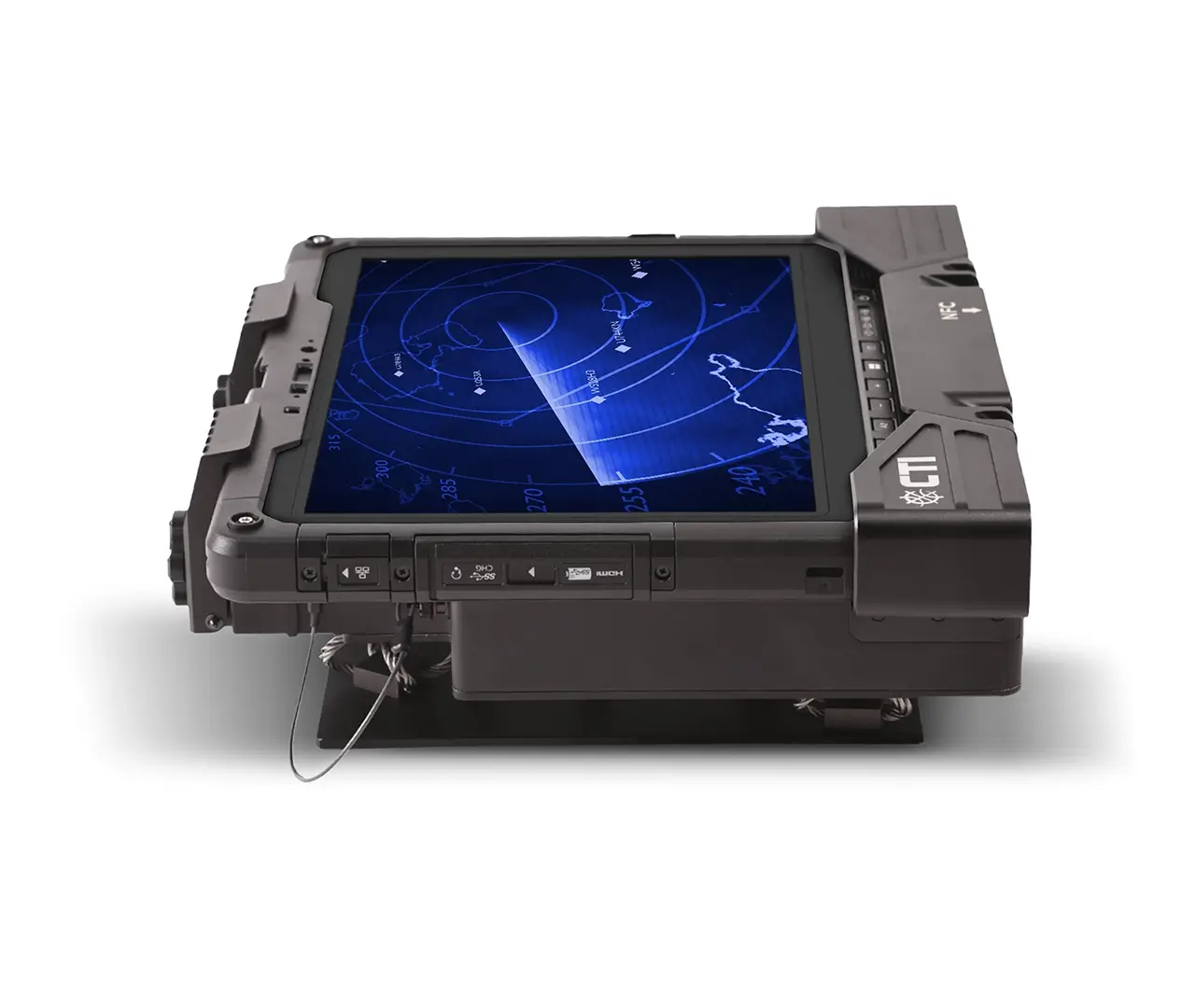

RVD Venture based on Panasonic Toughbook CF-33

Our cost-effective Rugged Vehicle Docks (RVDs) let you mount a rugged COTS computer in virtually any type of vehicle – tracked or wheeled, marine environment or desert, urban or out in the wild. These rugged docks are designed and tested to MIL standards, will protect your computer and its data, and offer a wide range of connections to meet most communication standards.

Fully Ruggedized, high-performance tactical Tablet based on Panasonic CF-33 Fully Rugged Tablet

Complies with MIL-STD 810, 461, 1275 and IP65

Meets the requirements for tanks, artillery and APC

Includes a wide range of interfaces

Tech Specs

Below are just a few of our standard specifications.
For more information and other options, please contact us at [email protected].

SOFTWARE Windows 10 Pro 64 bit

CPU
Intel® Corei5-10310u VPro ProcessorCore
Intel® Corei7-10810u VPro ProcessorCore

STORAGE & MEMORY
16 / 32GB DDR4 / 2666 MHz
512 GB / 1TB / 2TB NVMe

TEMPERATURE MIL-STD 810G, Method 501.5 & 502.5
Operating -20° F to +140° F
Non Operating -60° F to + 160° F

HUMIDITY MIL-STD-810G
Method 507.5

VIBRATION MIL-STD-810G
Method 514.6 (Tested for M-113 APC, Namer APC, Merkava MBT)

SHOCK FUNCTIONAL
MIL-STD-810G, Method 516-6, Proc.I 40G 11ms, Saw-Tooth

EMI/RFI
MIL-STD-461F

INGRESS PROTECTION RATING
IP65

CHASSIS
Aluminum (Docking)

DISPLAY
12” 3:2 QHD 2160X1440
10-point capacitive multi-touch + Waterproof Digitizer pen daylight-readable screen:

  • 2-1200 nit
  • Intel® UHD Graphics

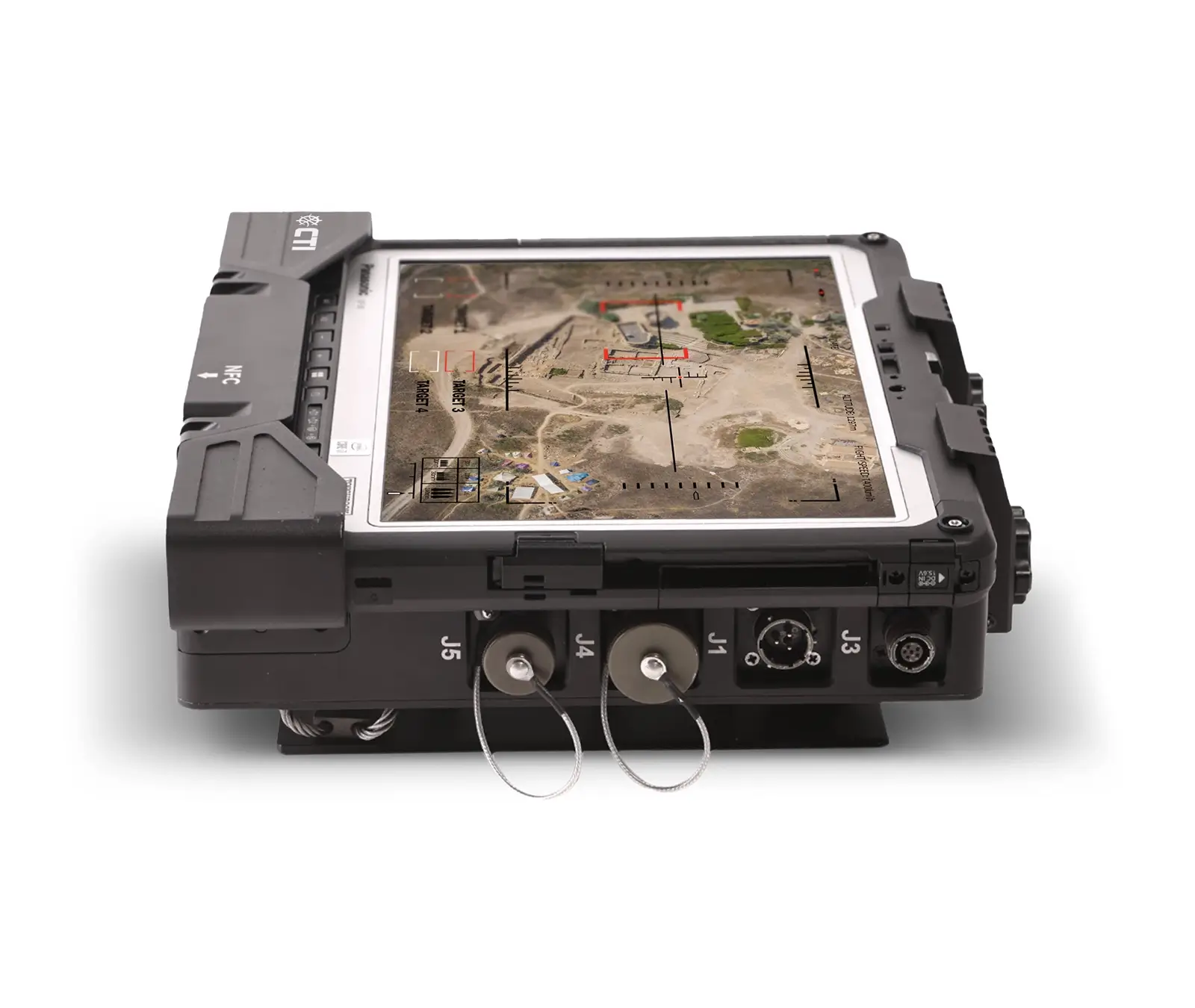

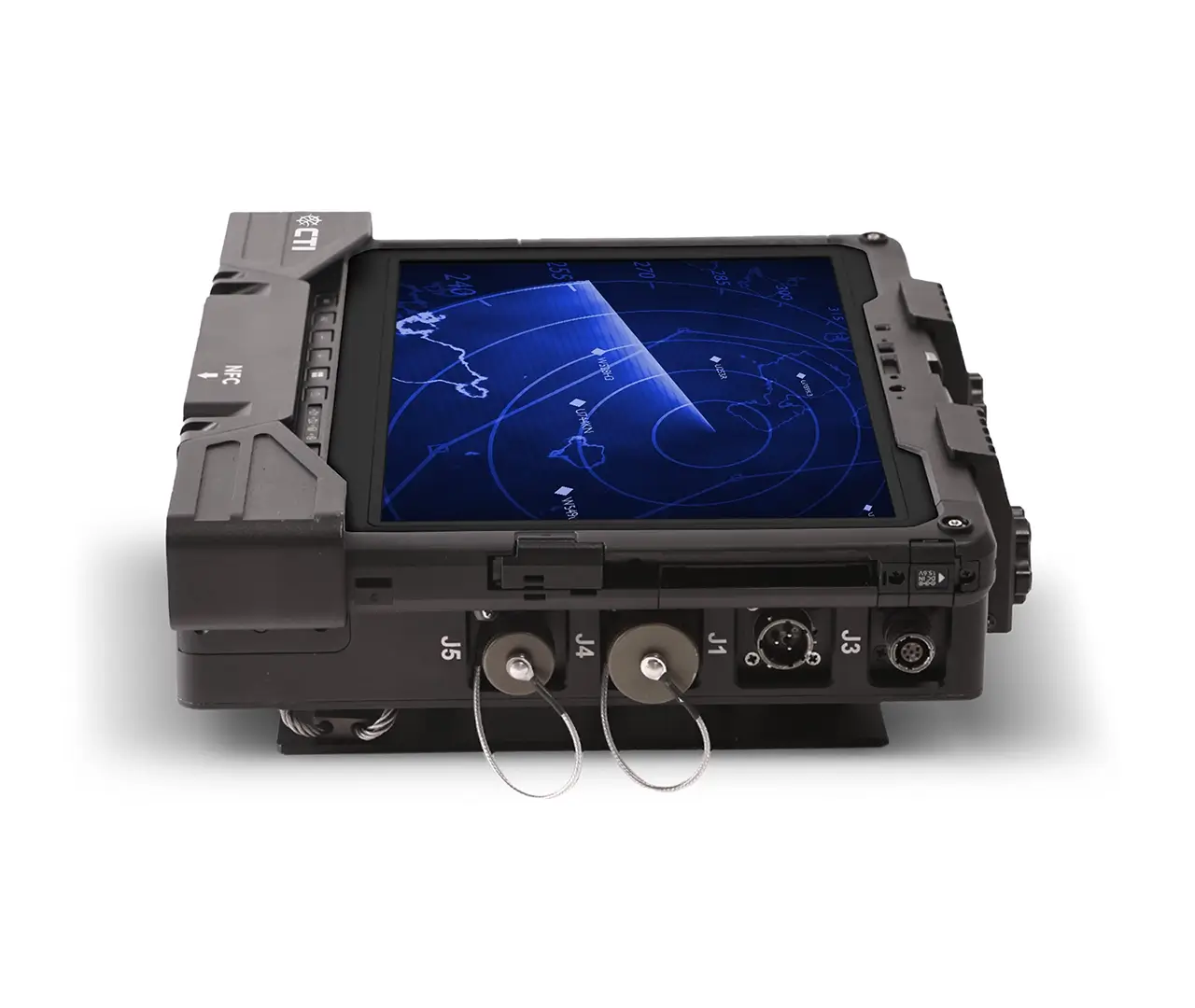

CONNECTORS

  • Multi-use: D38999/20WD35SN, Power In: MS3112E12-3PY, LAN 10/100: D38999/20WA35SN
  • LAN 1Gbps: D38999/20WB35SN, USB2.0: 804-003-07NF6-4SB

INTERFACES

  • DVI-D OUT x 1
  • 10/100 Mbps Ethernet
  • 1Gbps Ethernet
  • USB2.0 x 2
  • NFC (ISO 14443), with Otto Momentary pushbutton

OPTIONS

  • Ublox GPS with TNC connector
  • CANBUS
  • RS-232
  • RS-170 x 2 (input)
  • USB2.0 x 6
  • USB2.0 x 2

POWER SUPPLY
Input 16-32vdc. MIL-STD-1275D

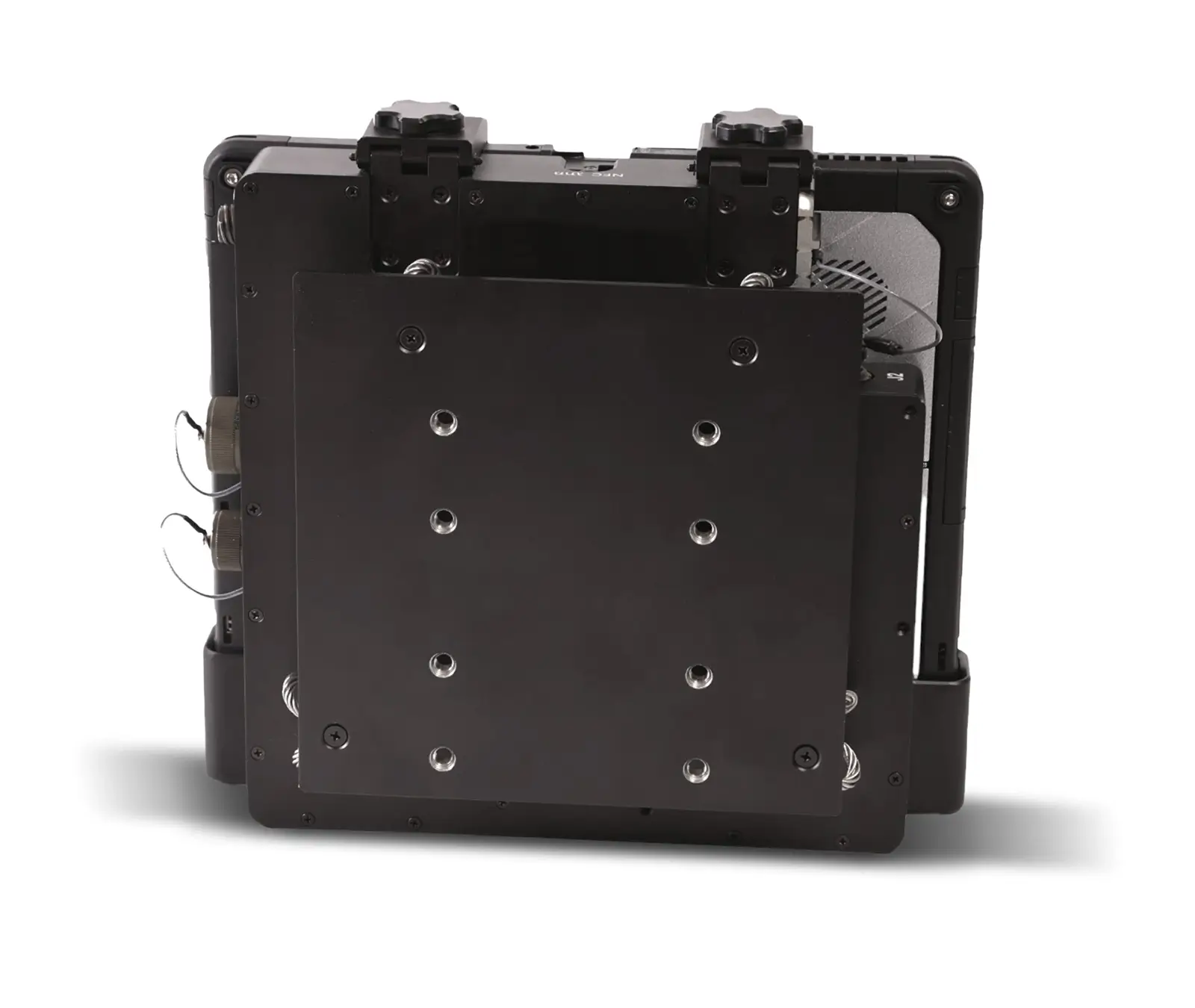

MECHANICAL INTERFACES

  • VESA
  • RAM Mount
  • Shock Absorbers

DIMENSIONS 330mm H x 320mm W x 110mm D
WEIGHT 5.0 Kg
COLOR Black, Other colors – Optional
WARRANTY 1-year limited warranty, parts, and labor
